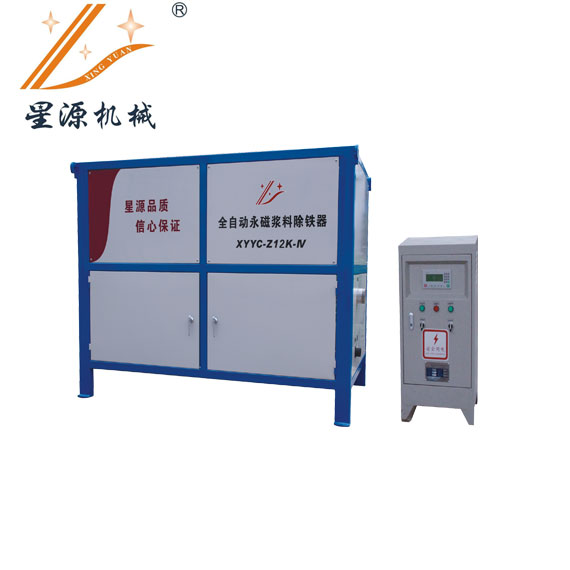

XYYC-Z12K-IV

Wet permanent magnetic separator type automatic type

（Application）：

   This wet permanent magnetic separator is come out to solve the problem of small magnetism contamination, difficulty of iron removal, high failure. This new magnetic separator has function of lower consumption, lower water consumption, good separation effect, automatic iron remove, working time adjustable, lower failure, big production capacity. It is now widely used in mining, non-metallic minerals, ceramic and electronic industry magnetic separation in slurry or liquid form.

（features）:

l High gradient magnetic field: the high magnetic field is up to 12000GS by using the good magnetic medium ,this machine can remove over 95% of the ferromagnetic materials in over 200 mesh particle separation.

l Big in capacity: this machine can produce over 30 ton per hour in slurry form .

l Low energy consumption: this machine consumes 0.1KW per hour ,water usage is lower than 0.2m³ per hour.

l Countercurrent type is used for remove iron, we adopt return flow pipe to make best of raw material.

l Longer lifetime: use high performance permanent grate, the annual demagnetization rate is less than 0.05%.

l The visible control panel is employed here , the time for removal process is adjustable.

（Parameters）:

Note: there are differences in processing capacity between ore pulp and dry ore, the following indicators are for reference only, to be confirmed in accordance with the actual materials.
